The voicemail came in at 6:47 PM on a Thursday. Fleet manager in Phoenix. 2018 Kenworth T680 dead in the bay—third time that month. A dozen U-codes littering the history, intermittent dash resets, a no-start that came and went like a desert thunderstorm. He’d already swapped an ECM on suspicion—a $2,500 paperweight now, sitting on his bench. The local dealership wanted $800 just to hook up their software and “run some tests.”
His question to me was simple: “What scope do I need so this never happens again?”
My answer surprised him. “Before you spend $2,000 on a scope,” I said, “let’s make sure you know how to use a $20 multimeter. Because 80% of the physical layer problems I’ve seen in 20 years—working on everything from BMW assembly lines to Freightliner chassis—can be found with a meter and a paperclip. The scope is for the other 20%—the ghosts.”
I’m not suggesting you skip the scope to save money. I’m suggesting you skip the scope until you’re sure the problem isn’t something a $20 tool can find in 10 minutes. If you don’t understand the basics of the physical layer—the copper and the crimp—a scope will just give you a very pretty picture of a problem you still can’t fix.
Here’s the engineering logic behind that statement, and the step-by-step method I use when a CAN bus goes down. This approach has saved our customers thousands in unnecessary dealership diagnostic fees.
The Root Cause: It’s Almost Never the “Computer”
The ECM is the easiest thing to blame. It’s also the most expensive thing to be wrong about—I know, because I’ve been that wrong. When a modern vehicle loses communication, the default reaction is to point at the module. But in my experience, from the BMW plant floor to the repair bay, over 70% of network faults are physical layer issues.
If the engine is the heart, the CAN bus is the spine—except when this spine gets pinched, the truck doesn’t feel its own feet. The Controller Area Network (CAN bus) is a differential pair of wires—CAN High and CAN Low—terminated at each end with a 120-ohm resistor. These wires carry a balanced voltage. I keep a sticky note on my meter with three numbers: 2.5, 3.5, 1.5. For a CAN High line, 2.5V is recessive (logic 1), and 3.5V is dominant (logic 0). CAN Low is the inverse: 2.5V recessive, 1.5V dominant. If I don’t see those, I start looking for copper problems before software problems.
In the world of heavy-duty truck diagnostics, after twenty years of chasing electrical ghosts, I’ve learned they hide in three places—and two of them aren’t the module you’re about to replace:
- Termination Failure: One or both 120-ohm resistors are missing or open. This causes signal reflections on the wire, leading to corrupted data and intermittent faults.
- Bias Voltage Shifting: A short to power or ground (or between the pair) that pulls the 2.5V baseline off, garbling or overpowering the signal.
- High-Resistance Junctions: Corroded pins, poor crimps, or partially broken wires that create intermittent opens.
Your multimeter is the detective. It asks the questions. The scope is the witness—it shows you what actually happened, but only if you know what questions to ask first. That’s the foundation of effective CAN bus troubleshooting.

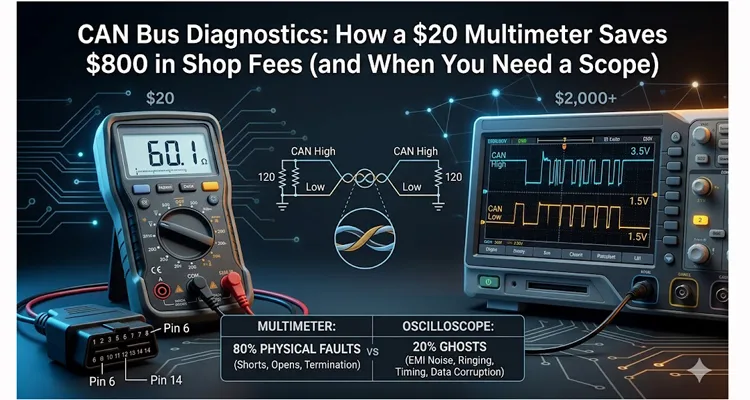

The $20 Multimeter Strategy: A Step-by-Step Physical Layer Autopsy
Forget the scan tool for a minute. Unplug the suspect module, or better yet, find your OBD-II connector. We’re going to check the fundamentals. This takes 10 minutes and requires only a digital multimeter (DMM) capable of reading ohms and DC volts. This is the core of physical layer diagnostics. For a deeper dive into systematic CAN bus physical layer testing, our engineering team has documented a full CAN Bus Physical Layer Testing Guide that walks through each validation step in a lab setting.
Step 1: The Termination Test (Key Off, Battery Connected)
This checks the integrity of the network backbone. At the OBD-II port, you’re looking for pins 6 (CAN High) and 14 (CAN Low).
- Set your meter to ohms (Ω).
- Probe pin 6 and pin 14. You should read approximately 60 ohms.
Why? The network has two 120-ohm termination resistors in parallel (one at each end of the bus). The formula for parallel resistors (R1*R2)/(R1+R2) gives you 60. If you see 120 ohms, you’re missing one termination resistor. If you see a dead short (near 0 ohms) or an open line (OL), you have a major short or open in the backbone.
Pro tip: I keep a spare 120Ω resistor in my bag. If I suspect termination issues, I temporarily jumper it across the bus while watching the waveform. Instant confirmation. This trick has saved me hours of intermittent fault finding.
Step 2: The Bias Voltage Test (Key On, Engine Off)
This checks that the modules are powered up and attempting to communicate.
- Set your meter to DC volts.
- Probe pin 6 (CAN High) to battery ground. You should see a voltage around 2.5V to 2.6V.
- Probe pin 14 (CAN Low) to battery ground. You should see a voltage around 2.4V to 2.5V.
Note: CAN High and CAN Low are usually within 0.1V of each other in a resting, idle state. If one is at 0V, 5V, or 12V, you have a short to power or ground somewhere in that leg.
Step 3: The Differential Check (Still Key On)
This confirms the pair is balanced.
- Keep your meter on DC volts.
- Probe pin 6 (positive lead) and pin 14 (negative lead). You are now reading the differential voltage.
- With the bus idle, you should read 0.0V to 0.1V. If you see battery voltage or a constant high voltage, CAN High is shorted to power somewhere.
The $800 Savings
If Steps 1, 2, or 3 fail, you have a physical layer problem. You don’t need a dealership to tell you that. You need to start tracing wires, checking for chafed harnesses, corroded connectors, or water intrusion in a junction box. I once found a bad termination resistor hidden inside a transmission housing on a Volvo that had been “intermittently failing” for six months. A meter found it in 5 minutes. That’s your $800 saved—and a perfect example of why mastering CAN bus diagnostics with basic tools pays off.
When You Absolutely Need a Scope (The Ghosts)
A multimeter catches the corpse—the wire that’s already dead. A scope catches the seizure—the wire that’s twitching just enough to corrupt data. You need a scope when:
- The Meter Says It’s Fine: You have 60 ohms termination, and the bias voltages look correct, but the module communication is still glitchy or dropping out.
- Intermittent, Load-Based Failures: The truck works fine cold but fails when it warms up. Or it works fine until you turn on the A/C or the marker lights.
- You Need to See the Protocol: You need to confirm that a module is actually transmitting a signal, even if the data is corrupted.
A scope lets you see the actual square wave. You’re looking for:
- Amplitude Issues: Is the dominant voltage only hitting 2.8V instead of 3.5V? You have a voltage drop from corrosion or a bad ground.
- Ringing or Reflections: Jagged edges on the square wave indicate a termination problem or impedance mismatch in the wire.
- Timing Issues: The width of the bits is distorted. This usually points to a failing module transceiver.
Here’s the truth: If you diagnose it with a meter first, when you do connect a scope, you’ll know exactly what you’re looking at. You’ll be able to say, “That reflection on the wave confirms the termination resistor we suspected is open.” The scope confirms the theory; the meter gave you the theory.
I watched a CAN High line last Tuesday that looked perfect at idle—clean 2.5V square wave. Then the tech revved the engine. The whole signal collapsed to 1.8V. Bad alternator diode injecting noise. The scope caught it; the meter never would have. That’s the line between basic and advanced CAN bus diagnostics. For fleets dealing with industrial EMI environments, we’ve published a Field Guide to CAN Bus EMI Shielding that covers how to identify and harden against exactly this type of noise injection.
What I Learned the Hard Way: Common Mistakes in the Field
I’ve trashed three modules learning this lesson: checking termination with the key on. That first step—probing pins 6 and 14 at the OBD port—requires the key to be off. If the key is on, the modules are powered and you’ll get a false reading on your ohmmeter. Now I tell every tech I train—key off, always, or trust nothing.
- Forgetting the Ground: A bad module ground can wreak havoc on the CAN bus. Before condemning a module, check its ground circuit for voltage drop under load. A 0.5V drop on a ground can shift the entire reference for the CAN transceiver.
- Assuming the Obvious: I saw a tech replace a chassis harness on a Freightliner because CAN Hi and CAN Lo were shorted. Turned out, a wire harness tie-down had been over-tightened at the factory, crushing the insulation on two wires deep inside a loom. A meter found the short, but it took a visual inspection and a razor blade to find where. Don’t stop at the code; find the physical location. This kind of intermittent physical damage is exactly what our Diagnose Intermittent CAN Bus Failures guide was written to address.
How to Confirm Your Repair Worked
Clearing codes without finding the physical cause is like resetting a tripped breaker without asking why it tripped. The lights come back on—until they don’t. Do this instead:
- Repeat the Multimeter Tests: Re-check termination (60 ohms) and bias voltages (approx. 2.5V each) to ensure the backbone is intact.
- Load Test Your Repair: Wiggle the harness near your repair area. Tap on modules. Recreate the conditions that caused the failure initially (heat, vibration).
- Monitor Live Data: Use a scan tool to see if the modules that were “lost” are now communicating and reporting realistic data.
From a Factory Perspective: Why Physical Integrity Matters
This isn’t just theory for us. When you’re dealing with high-speed CAN signals, the physical construction of the cable matters as much as the wiring diagram. Last month, we rejected 47 pins from a supplier batch because the crimp height varied by 12 microns. That’s half the thickness of a human hair—and enough to create an intermittent open that would send a field tech hunting for ghosts for days.
Our facility operates under ISO 9001 and IATF 16949 quality management systems—the same rigorous automotive standard that OEMs require for zero-defect production. Every cable assembly we produce is a bet against these exact problems. Every “ghost” story I’ve told in this article—the Volvo transmission housing, the Freightliner crushed harness, the 0.2V drop that cost $2,500—those are exactly what our QC process is designed to prevent. When you’re sourcing OEM diagnostic cables, this level of precision is what separates a reliable tool from another variable in your diagnostic problem.
| Engineering Standard | Why It Prevents “Ghost” Faults |
| 100% Tested Crimps (4-Step Inspection) | Eliminates the “intermittent open” caused by micro-variations in crimp force. |
| RoHS Compliant / Full-Plastic Design | Prevents the environmental corrosion that leads to shorts to ground in connector housings. |
| OEM Customization (AWG, Length, Shielding) | Ensures correct impedance matching to prevent signal reflections and ringing. |
| Climate-Controlled Warehouse (5S) | Prevents insulation degradation and moisture absorption before cable is even cut. |
We adhere to RoHS, CE, UL, and REACH standards because a cable that fails spec is just another variable in your diagnostic problem. When you plug one of our cables into your diagnostic setup, the cable stops being part of the conversation. The only variables left are the ones you’re actually trying to solve.
Related Products for a Reliable Diagnostic Chain
If you’re building a diagnostic setup or need a guaranteed physical connection, here are the components we focus on. The same approach works for J1939 heavy-duty networks—different pins, same physics.
- OBD-II to DB9 or USB Cables: A poorly shielded cable can introduce noise. We engineer ours for signal integrity. For technicians who need to extend their diagnostic reach without compromising signal quality, our OBD2 Extension Cable provides a precision-built solution that maintains the same physical layer integrity we’ve discussed throughout this guide.
- Breakout Boxes: For permanent installation or frequent testing, a breakout box (like a T-harness) lets you probe pins safely while the system is live.
- Custom Cable Lengths: For test stands or bench setups, we offer OEM customization on length, color, and connector type, so you can build a harness that matches your specific test environment. Whether you need a custom CAN bus harness or a specialized adapter, we build it.
Frequently Asked Questions
Q: I get 120 ohms at the OBD port, not 60. What does that mean?
A: You’re missing one of the two termination resistors. The bus will likely work, but it’s prone to signal reflections and intermittent failures. Find the module at the far end of the bus that should contain the missing resistor; it might be unplugged or its internal termination circuit is damaged. Field note: I once chased this for three hours on a brand-new tractor before realizing the factory forgot to install the terminating module at the end of the line. It happens.
Q: CAN High is at 0V, CAN Low at 5V. What happened?
A: You have a classic short. CAN High is shorted to ground. CAN Low is shorted to power (or a sensor reference voltage). Unplug modules one by one until the voltage returns to 2.5V to isolate the shorted module or section of harness. Field note: Start unplugging modules near the back of the bus first—I’ve found more chewed wires behind rear lighting assemblies than anywhere else.
Q: My multimeter shows correct voltages, but the scan tool still says “No Communication.”
A: You likely have a data corruption issue or a problem with the module’s power/ground. This is where you need a scope to see the signal quality. Alternatively, check the module’s specific power and ground pins at its connector under load. This is a classic case of intermittent CAN bus faults that require deeper investigation.
Q: Can a bad battery cause CAN bus issues?
A: Absolutely. If the system voltage drops below a certain threshold (usually around 9-10V during cranking), modules can brown out and reset, causing a temporary loss of communication. Check voltage at the OBD port pin 16 (battery positive) and pin 4/5 (ground) while cranking. Field note: I carry a cheap voltage recorder that clips to the battery for overnight parking lot tests.
Q: I repaired a chafed wire and now the bus works. Do I need to do anything else?
A: Yes. Seal the repair properly with heat-shrink butt connectors or solder and waterproof heat-shrink tubing. Moisture ingress into a repaired wire is the #1 cause of repeat failures.
Q: How do I test the CAN bus on a bench with a bare module?
A: You’ll need to provide power, ground, and most importantly, the two 120-ohm termination resistors—one at each end of your bench harness. Without them, the module will not communicate properly, even on the bench.
Q: What is the difference between CAN High and CAN Low wire colors?
A: While not a hard standard, the most common industry practice is CAN High = Yellow, CAN Low = Green. But always verify with the vehicle’s specific wiring diagram. I’ve seen manufacturers swap these colors before.
Q: Can a bad relay or solenoid cause CAN bus noise?
A: Yes. A collapsing magnetic field in a solenoid coil can send a voltage spike through the system if the suppression diode is fried. This can look like noise on the scope. Always check for aftermarket accessories wired directly into the harness without proper suppression.
Have a specific CAN bus ghost story or a question about a physical layer problem you can’t solve? I’m happy to take a look. If you need a custom harness for a test bench or a specific vehicle application—maybe a different AWG, a specific color, or your brand on the connector—that’s what our engineering team does every day. We specialize in OEM diagnostic cables that remove the guesswork from your diagnostics.
Diagnostics is an art. Your hardware shouldn’t be the variable.
